Products

Peripheral Pumps

Application

Domestic Water Supply

Home Pressure Boosting

Garden / Fountains

Over Head Tanks

Construction Site

Salient Features

Benefits

Cast Iron Casing and bracket with brass inserts
Wear and Tear limited
Stainless steel motor shaft
Low maintenance, extended pump life
Ceramic and graphite mechanical seal
Brass / Noryl Impellers
Anti-corrosive resistance
Extended pump life
Thermal-cut out relay is incorporated
Provides winding protection
Insulation class F
To improve winding insulation
Protection IP 44
Prevents dust & Spillage of water

Technical Data

Flow Q
max 55 lpm
Head H
max 45 mtr
Liquid temp
up to 60 Deg C
Suction Lift
up to 7 mtr
Power supply
220 -240V, 50Hz

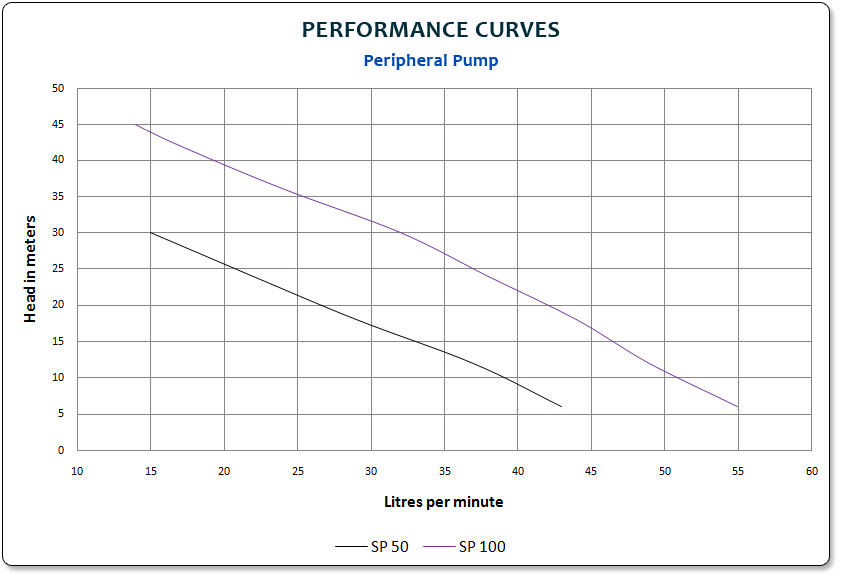

Performance Table and Chart For Peripheralpump:

Model
Power
Pipe size
Head
in Mtr
6
12
18
24
30
36
42
45

kW
HP
Suction
Delivery

SP 50
0.37
0.5
1"
1"
Litre
per min
40
39
24
20
15

SP 100
0.75
1.00
1"
1"
55
49
44
38
32
24
17
14

Note : Customized design changes and requirements can be made.
